Step-by-Step Guide to Installing a Dual Battery System
Embrace the flexibility and performance offered by modern battery technology, and enjoy seamless travels with the assurance of uninterrupted power.
Installing a dual battery system in your vehicle or camper can revolutionize your adventures. Whether you’re an outdoor enthusiast, a frequent road-tripper, or just need reliable backup power, a dual battery setup ensures you have a constant and dependable power source.
This step-by-step guide will take you through the process of installing EcoFlow’s portable dual battery system—a versatile, high-performance solution designed for easy installation and optimal use.
What Is a Dual Battery System and Why Do You Need One?
Understanding the Purpose of a Dual Battery System
A dual battery system is designed to provide an additional power source for your vehicle, ensuring your primary battery is dedicated to starting the engine. This auxiliary power system can run electronics and appliances without draining the main battery.
Benefits of a Portable Dual Battery System Over Traditional Setups
Unlike traditional 12V systems fixed in the car, EcoFlow’s portable dual battery system offers flexibility, allowing for use in different scenarios such as outdoor camping and home power backup. Traditional setups can be costly, complex, and add unwanted clutter, while portable systems are cost-effective and versatile.
Key Features of the EcoFlow Portable Dual Battery System

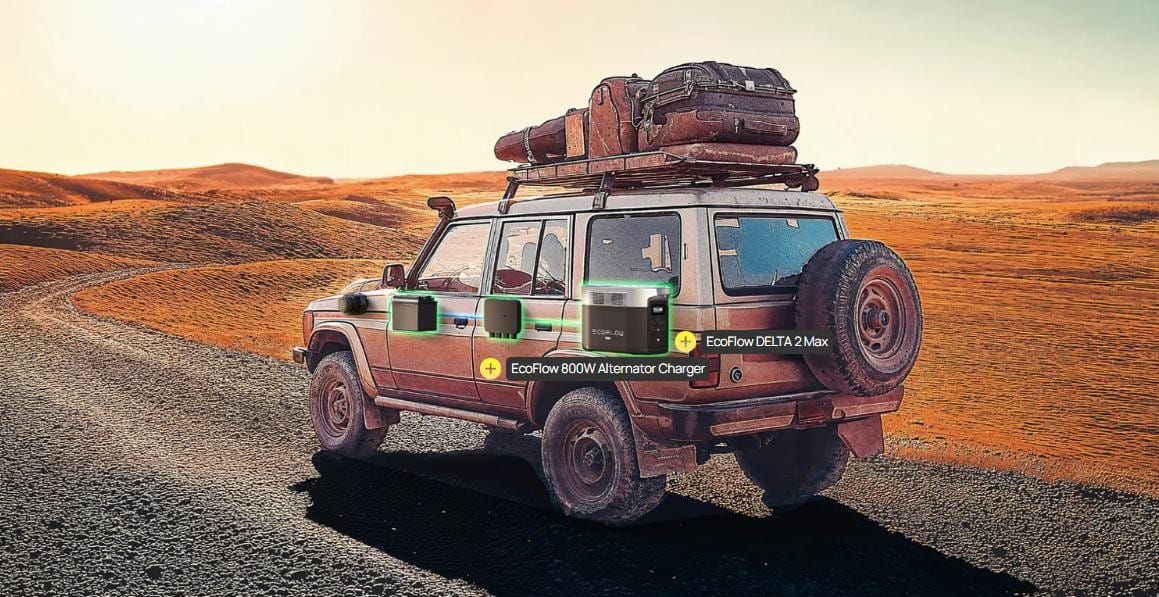

EcoFlow’s system features the DELTA series portable power stations and an 800W alternator charger, offering fast charging and ease of use. The system provides noise-free and fume-free power with minimal maintenance. Plus, its portability allows for flexible applications, both inside the vehicle and outdoors.
Essential Tools and Components for Installation
Required Tools for a Hassle-Free Setup
To install your dual battery system efficiently, you’ll need some basic tools: wrenches, screwdrivers, mounting brackets, battery terminals, and cable ties. Having these tools ensures you won’t face any unexpected obstacles during the installation.
Choosing the Right Battery and Charger
Selecting compatible batteries and a charger is crucial. EcoFlow’s DELTA series power stations, combined with the 800W alternator charger, provide optimal performance. Choose a battery with sufficient capacity and an appropriate charger for your vehicle’s power system.
Safety Precautions Before Installation
Safety is paramount. Always disconnect the vehicle’s negative battery terminal before beginning the installation. Use insulated tools to prevent short circuits, and ensure the work area is ventilated to avoid any hazards associated with battery fumes.
Step-by-Step Guide to Installing a Dual Battery System
Step 1: Selecting the Best Location for Your Dual Battery System
The battery location is vital for optimal functionality. Choose a spot that’s easily accessible yet secure, such as the trunk, under a seat, or in a dedicated under-hood battery tray. Ensure the area is dry and free from extreme temperatures.
Step 2: Mounting the Battery Securely in Your Vehicle
Secure the battery using mounting brackets. Ensure all connections are firm, and the battery is stable to prevent movement. Utilize battery trays and mounting hardware to keep the battery in place, which will help avoid any damage during transit.
Step 3: Connecting the Battery to the 800W Alternator Charger
Connect the secondary battery to the 800W alternator charger using high-quality cables. Ensure the positive terminal is connected to the positive post of the battery and repeat the same for the negative terminal. Secure all connections to avoid disconnection from vibrations.
Step 4: Wiring the System for Optimal Power Distribution
Wire the dual battery system to distribute power efficiently throughout your vehicle. Use high-quality cables to connect the alternator charger to the power station and the appliances. Follow the vehicle’s wiring diagram to prevent any mix-ups.
Step 5: Testing the Installation and Ensuring Proper Functionality
Once the setup is complete, test the system. Start the engine to check if the alternator charges the secondary battery. Use an electrical tester to verify all connections work correctly, ensuring the main battery remains on standby for powering the vehicle.
Step 6: Using the EcoFlow Smart App for Monitoring and Control
Utilize the EcoFlow Smart App to monitor the system’s performance. The app provides real-time energy usage, battery status, and charging conditions. It allows you to manage the entire setup conveniently from your smartphone.
Common Mistakes to Avoid When Installing a Dual Battery System
Incorrect Wiring That May Lead to Power Failures
Ensure to follow wiring diagrams closely. Incorrect wiring can cause power failures or short circuits, possibly damaging your vehicle’s electrical system or the dual battery setup. Double-check all connections before finishing the installation.
Overloading the Battery Beyond Its Capacity
Avoid exceeding the battery’s capacity by evenly distributing the power load. Excessive power draw can degrade the battery life and performance. Regularly monitor the system through the EcoFlow app to keep track of the power usage.
Neglecting Regular Maintenance and Monitoring
Routine checks are essential to ensure your dual battery system continues to function correctly. Inspect all connections, clean battery terminals, and monitor battery health through the EcoFlow app to avoid unexpected outages.
Conclusion
Installing a portable dual battery system, like the EcoFlow setup, can greatly enhance your travel experiences, providing a reliable power source for different scenarios.
With the right tools, careful planning, and adherence to safety procedures, you can easily set up a dual battery system that ensures your adventures are powered up and stress-free. Embrace the flexibility and performance offered by modern battery technology, and enjoy seamless travels with the assurance of uninterrupted power.
